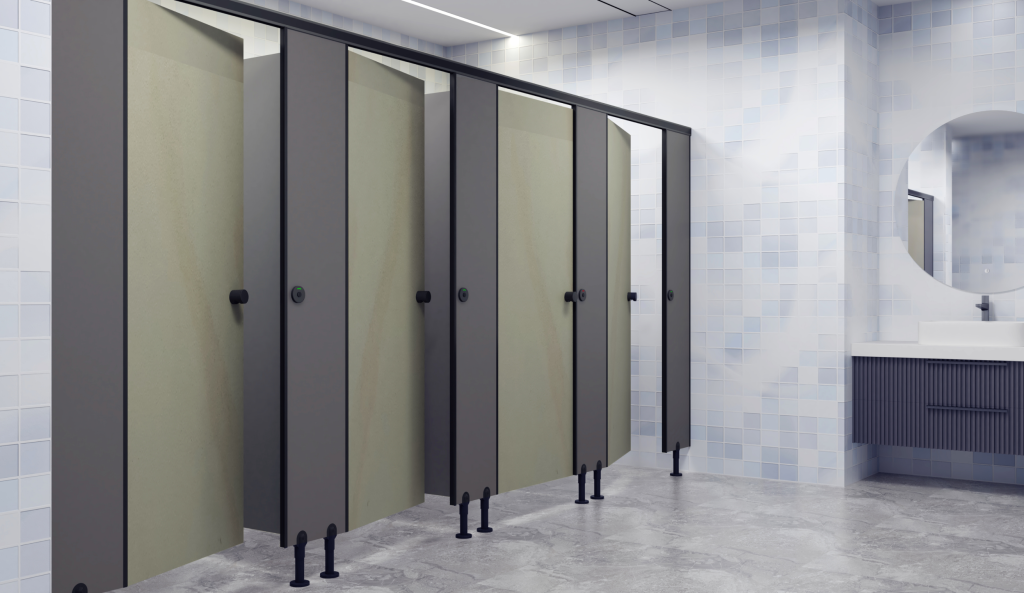

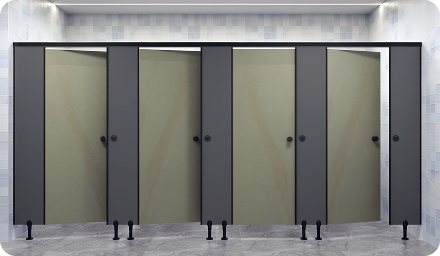

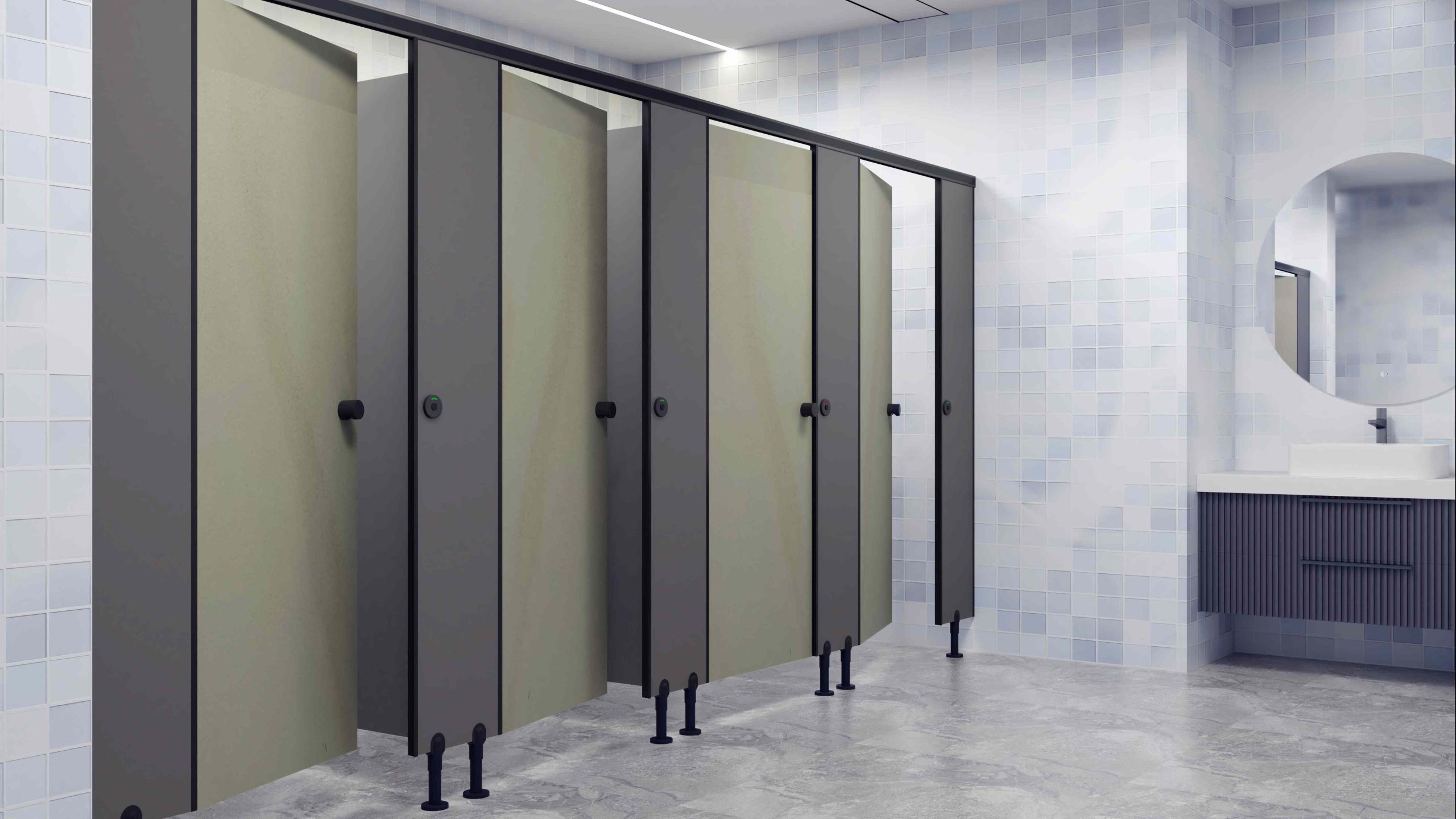

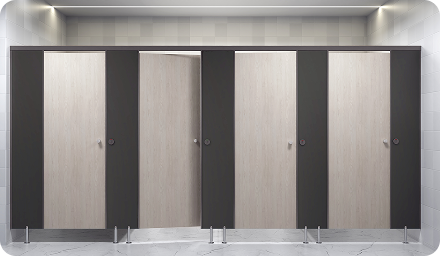

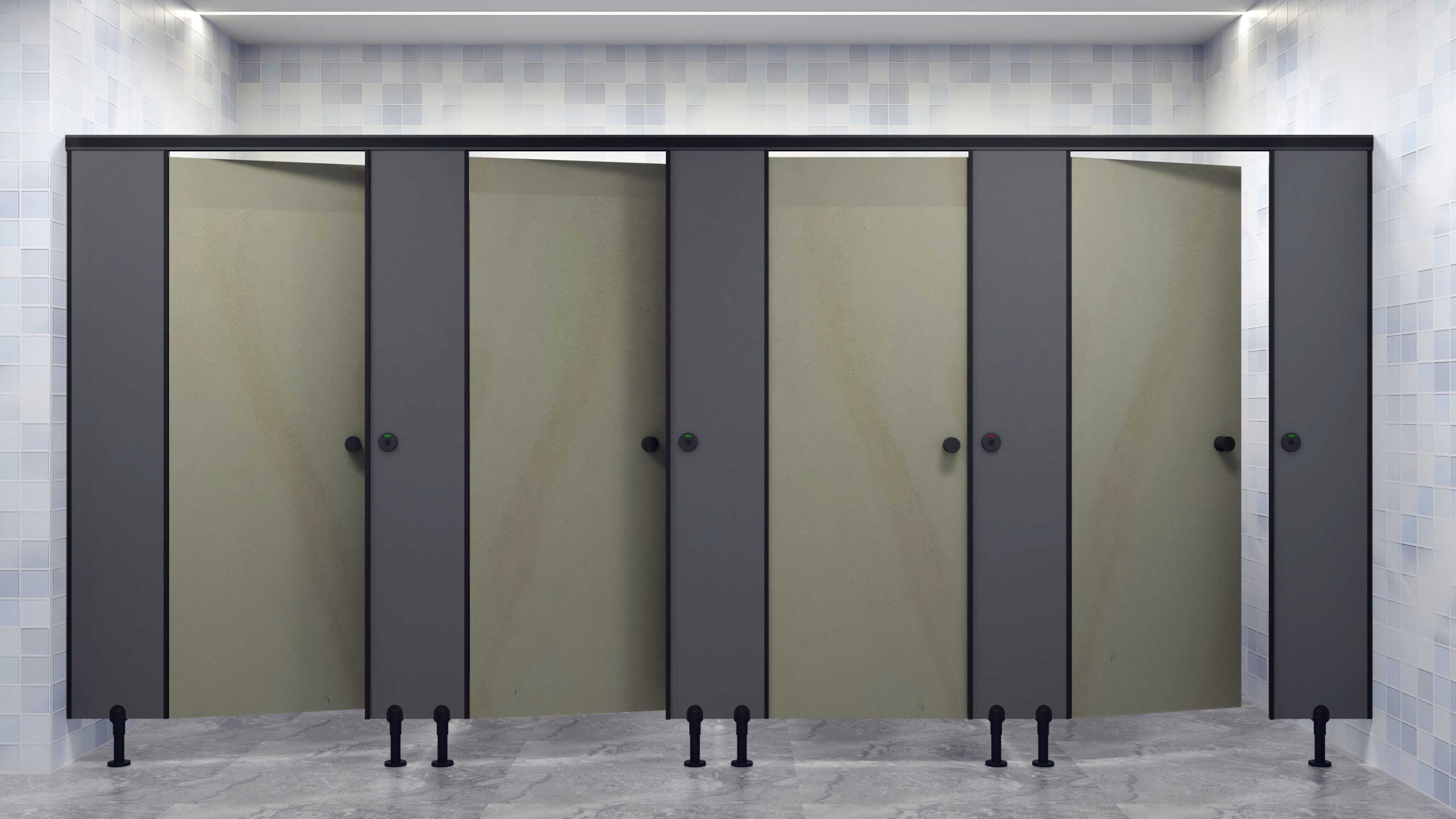

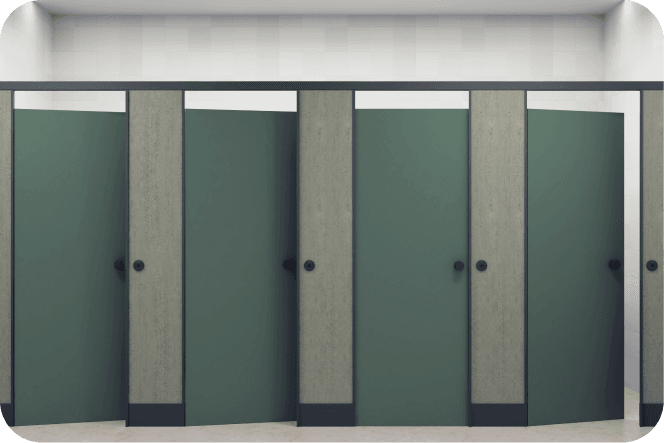

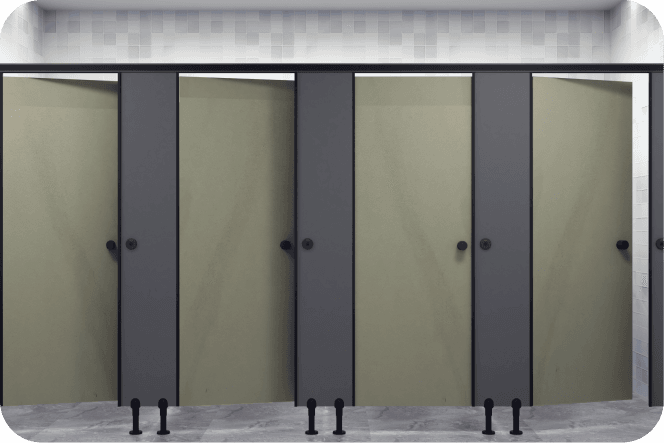

Elegance Series

Toilet Cubicles /Elegance Series

Economical, budget-friendly and very easy to maintain – Elegance series is an efficient model using a sleek aluminium anodized and Nylon Polyamide hardware, apart from standard black. It is also offered in grey, off-white and white finishes

Specification and Requirement: Yes

CAD File on request

ELEGANCE Series

Seamlessly combines affordability with sleek design for versatile restroom solutions.

Ideal for hostels, colleges, and various settings, delivering both privacy and durability.

Tailor-made for diverse settings with adjustable legs and a range of finishes.

Requires minimum 8ft ceiling height
Pilasters are anchored to floor by 100-150mm adjustable legs & at top fixed to top rail of width 50mm
After completion of Wall tiling, floor tiling, ceiling, grouting, painting, electric works & plumbing.
This series can be done when both side walls are available (i.e wall to wall) or only one side wall is available (i.e wall to panel)

Elegance Series by Super Creations, a line of restroom cubicles that seamlessly blend affordability with style and practicality. Crafted with meticulous attention to detail, these cubicles offer an economical and budget-friendly solution without compromising on quality. The Elegance Series features sleek aluminum powder-coated hardware, including U-channels, L-channels, door stopper channels, and top rails, ensuring durability and ease of maintenance. The adjustable legs made of Nylon Polyamide-06 provide versatility with a clearance height of up to 150mm.

Providing and fixing toilet cubicle systems of DEBO/STYLAM make and installed by Supercreations in standard dimensions of 900-1200mm width X 1500mm depth X 2000mm height with a door size of 600mm width X 1830mm height with 12mm thickness.
The solid grade Compact Laminate panels made of Phenolic resins under high pressure and temperature having density >1400 kg/m3, including doors, pilasters & intermediate panels, which are resistant to heat, bacteria, chemical, scratch and impact & water immersion through permissible increase on weight will be <0.60~0.8%.

Finished product will be as per approved texture, shade & drawing, detailing and developed according to IS-2046 and EN438 standards and as per fire retardant BS-476/97 standard. The product should have Green Guard Certificate. The toilet cubicle setup shall include necessary hardware fittings, made out of Nylon Polymide-06, as per manufacturer’s specifications and approved by the engineer.

Hardware fittings consist of :

Aluminium powder-coated U-channels
Aluminium powder-coated top rail
Aluminium powder-coated door stopper channel
Aluminium powder-coated L-channel
Nylon Polymide adjustable foot 150mm
Nylon Polymide lock
Nylon Polymide door knob
Nylon Polymide coat hook
Nylon Polymide gravity hinges
SS 304 screws and PVC wall plugs
Door noise reduction tape

The top fitting arrangement shall comprise of Aluminium powder-coated black top rail, fixed to pilasters. In absence of brick walls, Aluminium powder-coated black L – channel (connected to the top rail) shall be used on the corners of the cubicle. All screws should be of stainless steel (Grade-304). All pilasters shall be supported by Nylon Polyamide 06 adjustable foot.
The base of the Adjustable Leg shall be anchored to the floor with a clearance height of 150mm.The intermediate panel shall be of one continuous panel without any joint. All visible edges shall be chamfered.
