Ellipse Series

Toilet Cubicles / Ellipse Series

Economical, budget-friendly and very easy to maintain – Elegance series is an efficient model using a sleek aluminium anodized and Nylon Polyamide hardware, apart from standard black. It is also offered in grey, off-white and white finishes

Specification and Requirement: Yes

CAD File on request

Ellipse Series

Suspends from the floor, easy for cleaning

Aluminium top rail can be scrapped after cubicle useful life and can recover half the cubicle price

Save space and money on end pilaster

Requires minimum 8ft ceiling height
Pilasters are fixed to heavy duty top rails which is inturn fixed to walls using brackets giving floating look to cubicles.
After completion of Wall tiling, floor tiling, ceiling, grouting, painting, electric works & plumbing.
This series can be done only if both side walls are available.

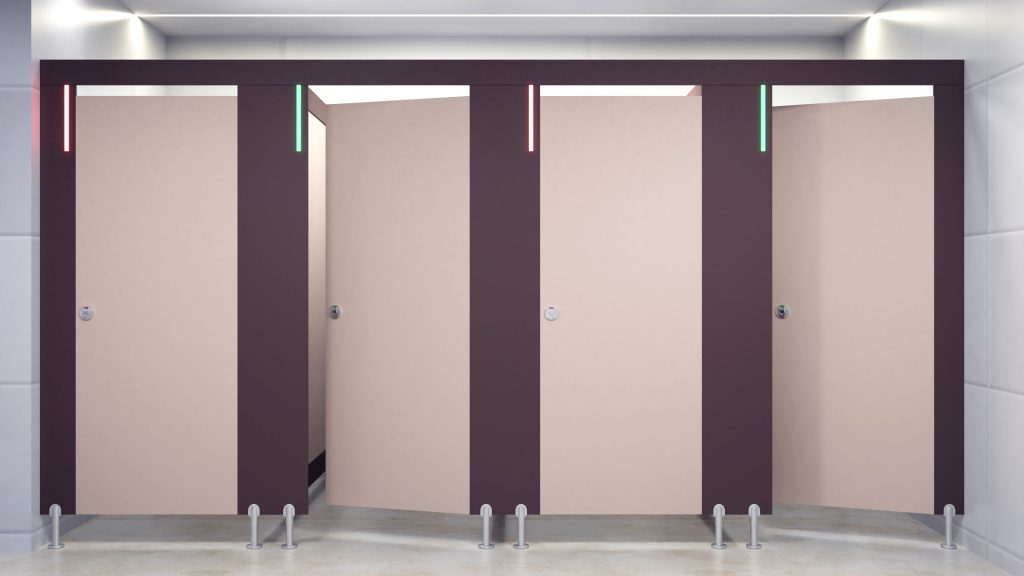

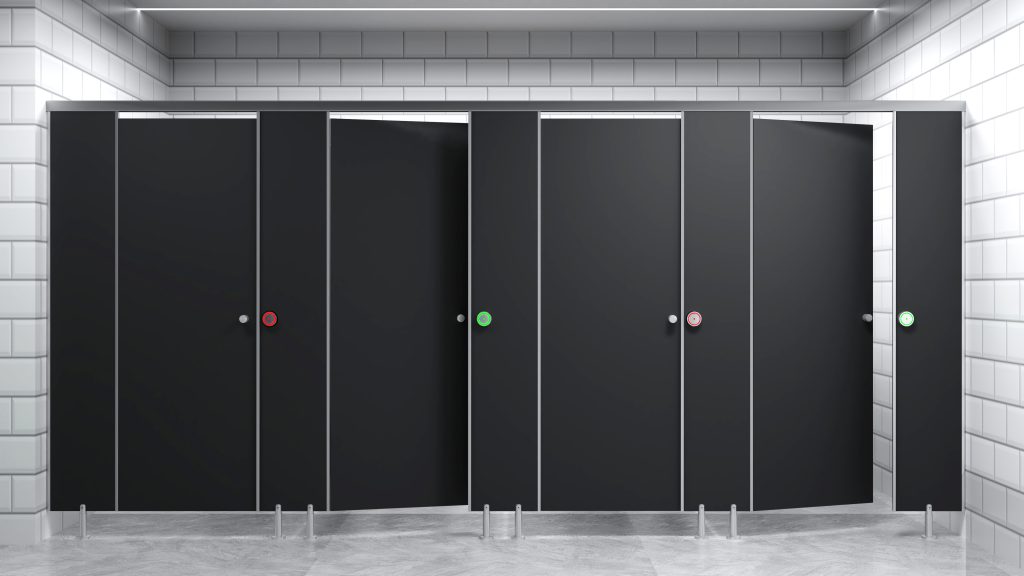

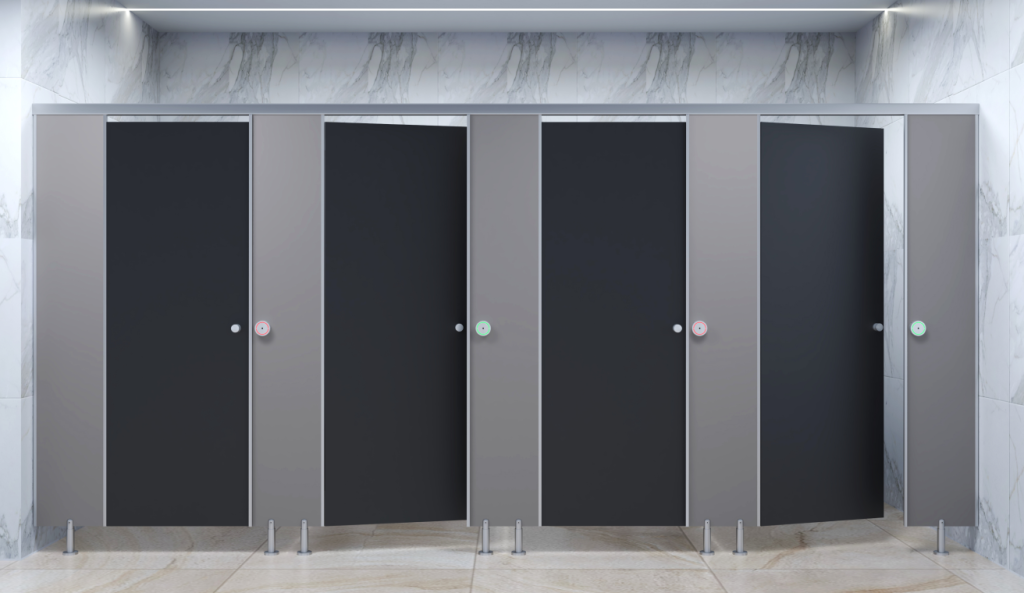

The Ellipse series restroom cubicles are a stylish and practical choice for any business looking to elevate their restroom design. With a minimalistic design, rebated facade, and floor-free access, these cubicles add a touch of sophistication to any space. The select grade load-bearing aluminium top rail is offered in extended and joint-free lengths, creating a stunning floating visual appeal. The durable hardware, including SS 304 U-Channels, SS 316 indicator lock, door knob, and coat hook, ensure a long-lasting and reliable product.

The Ellipse series is frequently built in IT parks, colleges, and hotels, and has been installed in prestigious locations such as Green Park Hotels, CARE Hospital, KL University, and Salarpuria Sattva. Trust the expertise of Super Creations to bring your restroom design vision to life with the Prominence series cubicles.

Providing and fixing toilet cubicle systems of DEBO India made and installed by Supercreations in standard dimensions of 900-1200mm width X 1500mm depth X 2000mm height with a door size of 600mm width X 1800mm height with 12mm thickness.
The solid-grade Compact Laminate panels made of Phenolic resins under high pressure and temperature having density >1400 kg/m3, including doors, pilasters & intermediate panels, which are resistant to heat, bacteria, chemical, scratch and impact & water immersion through permissible increase on weight will be <0.60~0.8%.

The finished product will be as per approved texture, shade & drawing, detailing and developed according to IS-2046 and EN438 standards and as per fire retardant BS-476/97 standard. The product should have a Green Guard Certificate. The toilet cubicle setup shall include necessary hardware fittings, made out of stainless steel (Grade 304 & 316)/Nylon Polyamide-06/, as per the manufacturer’s specifications and approved by the engineer.

Hardware fittings consist of :

Aluminium powder-coated/anodised U-channels
Aluminium powder-coated/anodised top rail
Aluminium powder-coated/anodised door stopper channel
Aluminium powder coated/anodised L- channel
Nylon Polyamide-06/SS 316 adjustable Leg (up to 150mm height)
Nylon Polyamide-06/SS 304 door knob with thumb turn lock & LED light
Nylon Polyamide-06/SS 304 coat hook
Nylon Polyamide-06/SS 304 auto return hinges
Nylon Polyamide-06/SS 304 screws and PVC wall plugs
Door noise reduction tape

The top fitting arrangement shall comprise of aluminium powder-coated/anodised top rail, fixed to pilasters. In the absence of brick walls, aluminium powder-coated/anodised L -channel(connected to the top rail) shall be used at the corners of the cubicle. All screws should be of stainless steel (Grade-304). The occupancy indicator thumb turn lock with LED light is fixed to a power source which is placed in the top rail. All pilasters shall be supported by Nylon Polyamide-06/stainless steel (Grade-316) adjustable foot.
The base of the adjustable leg shall be anchored to the floor with a clearance height of 150mm. The intermediate panel shall be one continuous panel without any joint. All visible edges shall be chamfered.
