Excel Box-up Series

Toilet Cubicles /Excel Box-up Series

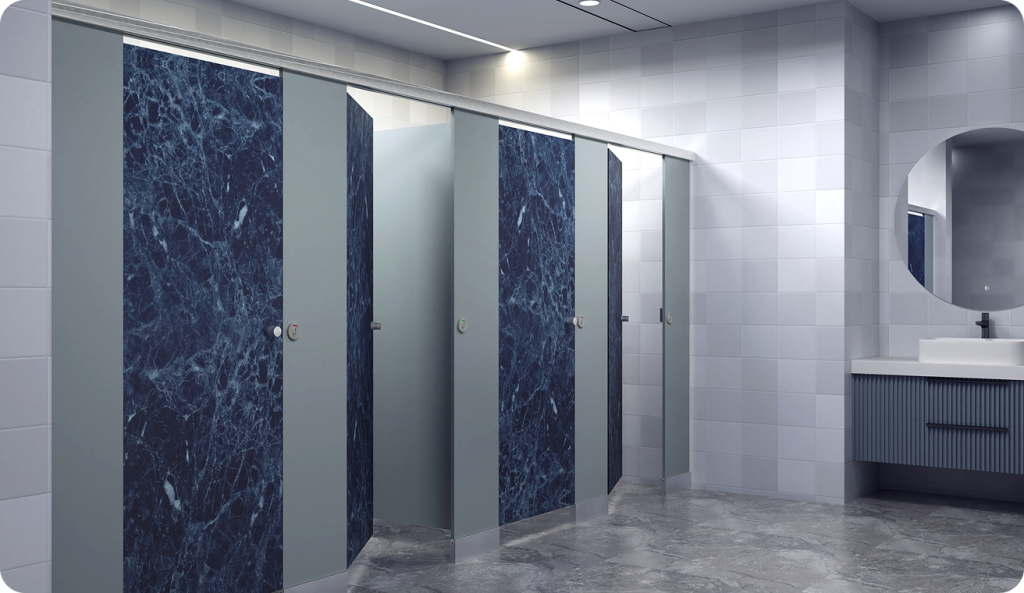

Excel Box-Up Series by Super Creations redefines restroom privacy with an innovative stainless steel box design, seamlessly blending durability and style. Ideal for diverse settings, it offers a clean, enclosed look while maintaining the robust characteristics of the Excel Series.

Specification and Requirement: Yes

CAD File on request

Excel box-up Series

Suspends from the floor, easy for cleaning

Aluminium top rail can be scrapped after cubicle useful life and can recover half the cubicle price

Save space and money on end pilaster

Requires minimum 8ft ceiling height
Pilasters are anchored to floor by 100-150mm adjustable legs & at top fixed to top rail of width 50mm
After completion of Wall tiling, floor tiling, ceiling, grouting, painting, electric works & plumbing.
This series can be done when both side walls are available (i.e wall to wall) or only one side wall is available (i.e wall to panel)

Introducing the Excel Box-Up Series, a distinctive and innovative solution for restroom cubicles by Super Creations. Developed to meet specific customer demands, this series delivers not only enhanced privacy but also retains the robust and stylish characteristics of the Excel Series. The front and bottom stainless steel box design adds a clean and enclosed look, making it an ideal choice for various settings such as hostels, dormitories, colleges, swimming pools, showers, and change rooms. Crafted with meticulous attention to detail, the Excel Box-Up Series combines durability with privacy, making it a versatile and reliable option for those seeking a restroom solution that goes beyond conventional design.

The hardware details of the Excel Box-Up Series are crafted for strength and resilience. From stainless steel U-channels, L-channels, and top rail to the unique Box-Up Shoe (100mm wide), each component is designed to ensure durability and long-lasting performance. The inclusion of SS 316 indicator locks, door knobs, coat hooks, auto return hinges, screws, PVC wall plugs, and door noise reduction tape completes the comprehensive setup. Elevate your restroom experience with the Excel Box-Up Series, where privacy meets style and durability.

Providing and fixing toilet cubicle systems of DEBO/STYLAM make and installed by Supercreations in standard dimensions of 900-1200mm width X 1500mm depth X 2100mm height with a door size of 600mm width X 1830mm height with 12mm thickness.
The solid grade Compact Laminate panels made of Phenolic resins under high pressure and temperature having density >1400 kg/m3, including doors, pilasters & intermediate panels, which are resistant to heat, bacteria, chemical, scratch and impact & water immersion through permissible increase on weight will be <0.60~0.8%.
Finished product will be as per approved texture, shade & drawing, detailing and developed according to IS-2046 and EN438 standards and as per fire retardant BS-476/97 standard. The product should have Green Guard Certificate. The toilet cubicle setup shall include necessary hardware fittings, made out of stainless steel (Grade-304 & 316), as per manufacturer’s specifications and approved by the engineer.

Hardware fittings consist of:

SS 304/316 U-channels
SS 304/316 top rail
SS 304/316 L-channel
SS 316 footplate of 100mm wide
SS 304/316 indicator lock
SS 304/316 door knob
SS 304/316 coat hook
SS 304/316 universal hinges
SS 304 screws and PVC wall plugs
Door noise reduction tape

The top fitting arrangement shall comprise of Stainless Steel (Grade-304/316) top rail, fixed to pilasters. In the absence of brick walls, Stainless Steel (Grade-304/316) L – channel (connected to the top rail) shall be used in the corners of the cubicle. All screws should be of stainless steel (Grade-304/316). All pilasters shall be supported by stainless steel(Grade-316 )Boxup Shoe.
The base of the bottom cladding shall be anchored to the floor with a height of 100mm.The intermediate panel shall be of one continuous panel without any joint. All visible edges shall be chamfered.
