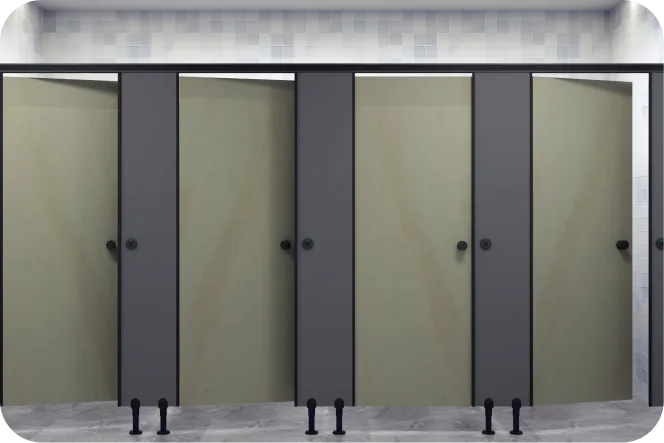

Economical, budget-friendly and very easy to maintain – Elegance series is an efficient model using a sleek aluminium anodized and Nylon Polyamide hardware, apart from standard black. It is also offered in grey, off-white and white finishes
Sleek design, robust stainless steel hardware
Ideal for high-traffic areas
Adaptable for prestigious locations, stadiums, and clubhouses

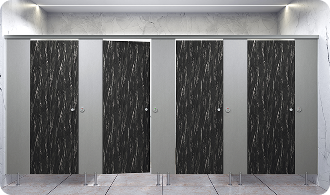

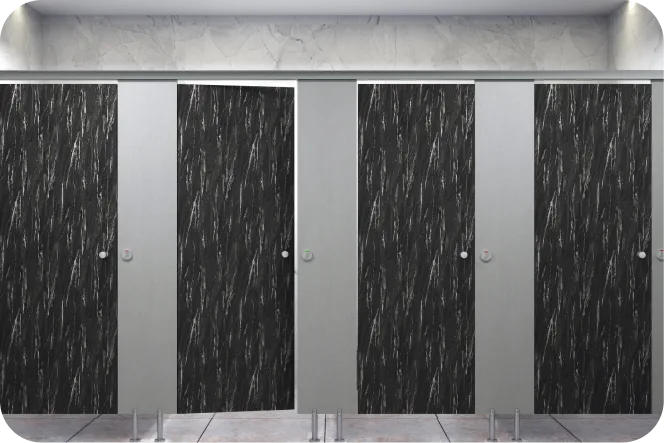

Excel Series by Super Creations, is a testament to robustness and sophistication in restroom cubicle design which stands out with its high-grade stainless steel hardware, including U-channels, L-channels, and top rails. The doors are equipped with indicator locks, door knobs, coat hooks, and auto return hinges, all made of durable stainless steel. With a commitment to customer satisfaction, Super Creations ensures timely delivery and efficient installation, making the Excel Series the epitome of style and practicality in restroom solutions. Perfect for stadiums and clubhouses, these cubicles are designed to elevate the aesthetics of any environment while ensuring durability and longevity.
The doors feature noise reduction tape for a quieter experience, making them suitable for high-traffic areas. Super Creations’ commitment to customer satisfaction ensures timely delivery and installation, making the Excel Series the perfect choice for those seeking the perfect blend of style and practicality in their restroom design.
Providing and fixing toilet cubicle systems of DEBO/STYLAM make and installed by Supercreations in standard dimensions of 900-1200mm width X 1500mm depth X 2000mm height with a door size of 600mm width X 1830mm height with 12mm thickness.
The solid grade Compact Laminate panels made of Phenolic resins under high pressure and temperature having density >1400 kg/m3, including doors, pilasters & intermediate panels, which are resistant to heat, bacteria, chemical, scratch and impact & water immersion through
permissible increase on weight will be <0.60~0.8%.
Finished product will be as per approved texture, shade & drawing, detailing and developed according to IS-2046 and EN438 standards and as per fire retardant BS-476/97 standard. The product should have Green Guard Certificate. The toilet cubicle setup shall include necessary hardware fittings, made out of stainless steel (Grade-304 & 316), as per manufacturer’s specifications and approved by the engineer.
Hardware fittings consist of:
SS 304/316 U-channels
SS 304/316 top rail
SS 304/316 L-channel
SS 316 adjustable foot with 150mm clearance
SS 304/316 indicator lock
SS 304/316 door knob
SS 304/316 coat hook
SS 304/316 universal hinges
SS 304 screws and PVC wall plugs
Door noise reduction tape
The top fitting arrangement shall comprise of Stainless Steel (Grade-304/316) top rail, fixed to pilasters. In the absence of brick walls, Stainless Steel (Grade-304/316) L – channel (connected to the top rail) shall be used on the corners of the cubicle. All screws should be of stainless steel (Grade-304/316). All pilasters shall be supported by stainless steel(Grade-316) adjustable foot.
The base of the stainless steel adjustable leg shall be anchored to the floor with a clearance height of 150mm.The intermediate panel shall be of one continuous panel without any joint. All visible edges shall be chamfered.
Description
Total height from floor
Width of cubicle
Depth
Divider
height
Pilaster width
Door height
Door width
Top rail height
Bottom gap
Panel thickness
Standard (in mm)
2000
1200
1530
1800
1830
100-300
1800
600
125
150
12
Customised (in mm)
2000 – 2250
1200 – 1500
1530 – 1830
1800 – 2100
1830
100-300
2100
750
125
150
12
