Experience the pinnacle of restroom elegance with the Excellence Series by Super Creations. This premium series seamlessly blends a sleek, invisible framework with top-quality stainless steel hardware, offering a sophisticated solution that defines modern luxury and performance.
Sleek aluminium D-poles and durable hardware for hassle-free restroom renovations
Blending style with practicality, the TD Series offers modern aesthetics for retrofitted restrooms.
Options for panel thickness and finishes, providing a tailored blend of style and performance.

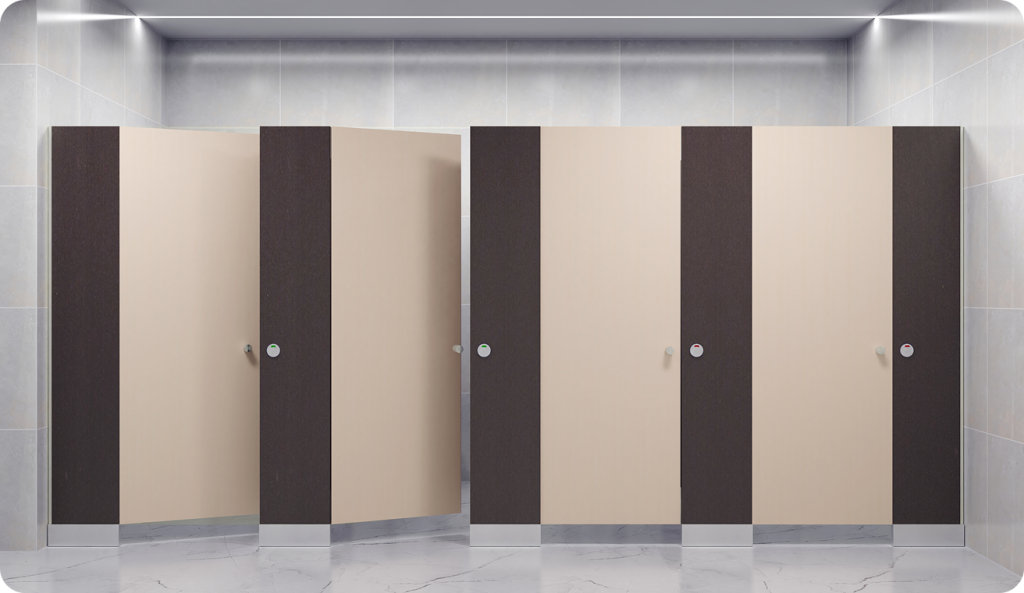

Introducing the Excellence Series, an embodiment of style and performance in restroom cubicles by Super Creations. Elevate your spaces with this premium choice that seamlessly integrates a sleek, invisible framework, offering a modern and sophisticated look. Crafted with precision, the Excellence Series boasts top-quality stainless steel hardware, including a box-up shoe for added strength, ensuring durability and longevity. Whether you are upgrading restrooms in a mall or an IT park, the Excellence Series stands as a testament to Super Creations’ commitment to delivering top-tier products that excel in both aesthetics and functionality.
The hardware details of the Excellence Series showcase meticulous attention to detail. From stainless steel U-channels, L-channels, and box-up shoe to premium-grade SS 316 accessories like indicator locks, door knobs, coat hooks, and auto return hinges, each component is designed for durability and a touch of sophistication. With options for panel thickness and customizable finishes, the Excellence Series provides a versatile and high-end solution for those seeking the perfect blend of style and performance in their restroom spaces. Choose Excellence for a restroom experience that defines modern luxury.
Providing and fixing toilet cubicle systems of DEBO/STYLAM make and installed by Supercreations in standard dimensions of 900-1200mm width X 1500mm depth X 2100mm height with a door size of 600mm width X 1830mm height with 18mm thickness.
The solid grade Compact Laminate panels made of Phenolic resins under high pressure and temperature having density >1400 kg/m3, including doors, pilasters & intermediate panels, which are resistant to heat, bacteria, chemical, scratch and impact & water immersion through permissible increase on weight will be <0.60~0.8%.
Finished product will be as per approved texture, shade & drawing, detailing and developed according to IS-2046 and EN438 standards and as per fire retardant BS-476/97 standard. The product should have Green Guard Certificate. The toilet cubicle setup shall include necessary hardware fittings, made out of stainless steel (Grade-304 & 316), as per manufacturer’s specifications and approved by the engineer.
Hardware fittings consist of:
SS 304/316 U-channels
SS 304/316 L-channel
SS 304/316 indicator lock
SS 304/316 door knob
SS 304/316 coat hook
SS 304/316 universal hinges
SS 316 100mm plate
SS 304 screws and PVC wall plugs
Door noise reduction tape
In absence of brick walls, Stainless Steel (Grade-304/316) L – channel shall be used on the corners of the cubicle. All screws should be of stainless steel (Grade-304/316). All pilasters shall be supported by stainless steel (Grade-316 )Box-up Shoe.
The base of the bottom cladding shall be anchored to the floor with a height of 100mm.The intermediate panel shall be of one continuous panel without any joint. All visible edges shall be chamfered.
Description
Total height from floor
Width of cubicle
Depth
Divider
height
Pilaster width
Door height
Door width
Top rail height
Bottom gap
Panel thickness
Standard (in mm)
2105
1200
1530
1800
1830
100-300
1800
600
125
150
12
Customised (in mm)
2105 – 2400
1200 – 1500
1530 – 1830
1800 – 2100
1830
100-300
2100
750
125
150
12,18
