Economical, budget-friendly and very easy to maintain – Elegance series is an efficient model using a sleek aluminium anodized and Nylon Polyamide hardware, apart from standard black. It is also offered in grey, off-white and white finishes
Suspends from the floor, easy for cleaning
Aluminium top rail can be scrapped after cubicle useful life and can recover half the cubicle price
Save space and money on end pilaster
The Prominence series restroom cubicles are a stylish and practical choice for any business looking to elevate their restroom design. With a minimalistic design, rebated facade, and floor-free access, these cubicles add a touch of sophistication to any space. The select grade load-bearing aluminium top rail is offered in extended and joint-free lengths, creating a stunning floating visual appeal. The durable hardware, including SS 304 U-Channels, SS 316 indicator lock, door knob, and coat hook, ensure a long-lasting and reliable product.

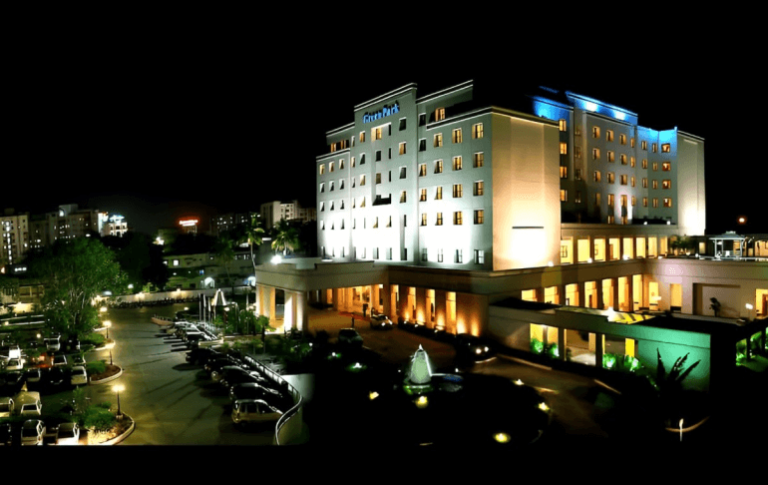

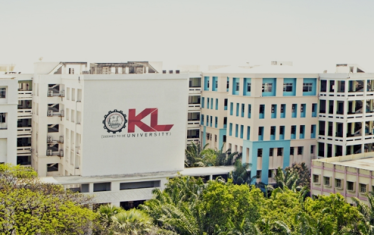

The Prominence series is frequently built in IT parks, colleges, and hotels, and has been installed in prestigious locations such as Green Park Hotels, CARE Hospital, KL University, and Salarpuria Sattva. Trust the expertise of Super Creations to bring your restroom design vision to life with the Prominence series cubicles.
Providing and fixing toilet cubicle systems of DEBO/STYLAM make and installed by Super Creations in standard dimensions of 900-1200mm width X 1500mm depth X 2105mm height with a door size of 600mm width X 1830mm height with 12mm thickness.
The solid grade Compact Laminate panels made of Phenolic resins under high pressure and temperature having density >1400 kg/m3, including doors, pilasters & intermediate panels, which are resistant to heat, bacteria, chemical, scratch and impact & water immersion through
permissible increase on weight will be <0.60~0.8%.
Finished product will be as per approved texture, shade & drawing, detailing and developed according to IS-2046 and EN438 standards and as per fire retardant BS-476/97 standard. The product should have Green Guard Certificate. The toilet cubicle setup shall include necessary hardware fittings, made out of stainless steel (Grade-304 & 316), as per manufacturer’s specifications and approved by the engineer.
Hardware fittings consist of:
SS 304 U-channels
SS304 top rail
SS 316 adjustable foot of 150mm
SS 316 indicator lock
SS 316 door knob
SS 316 coat hook
The top fitting arrangement shall comprise of Aluminum Anodized SS finish top rail of 125mm wide fixed to walls by L-Bracket. All screws should be of stainless steel (Grade-304). All pilasters shall be supported by Aluminum Anodized top rail gives suspended floating look with a clearance height of 100mm.
The intermediate panel shall be of one continuous panel without any joint. All visible edges shall be chamfered.
Description
Total height from floor
Width of cubicle
Depth
Divider
height
Pilaster width
Door height
Door width
Top rail height
Bottom gap
Panel thickness
Standard (in mm)
2105
1200
1530
1800
1830
100-300
1800
600
125
150
12
Customised (in mm)
2105 – 2400
1200 – 1500
1530 – 1830
1800 – 2100
1830
100-300
2100
750
125
150
12,18
