Super Kids Series

Toilet Cubicles /SUPER KIDS Series

Introducing the Super Kids Series by Super Creations — a vibrant blend of safety and creativity. Crafted with precision using advanced CNC machines, these restroom cubicles feature playful curves and durable hardware, providing kindergartens and schools with a joyful and secure environment for children.

Specification and Requirement: Yes

CAD File on request

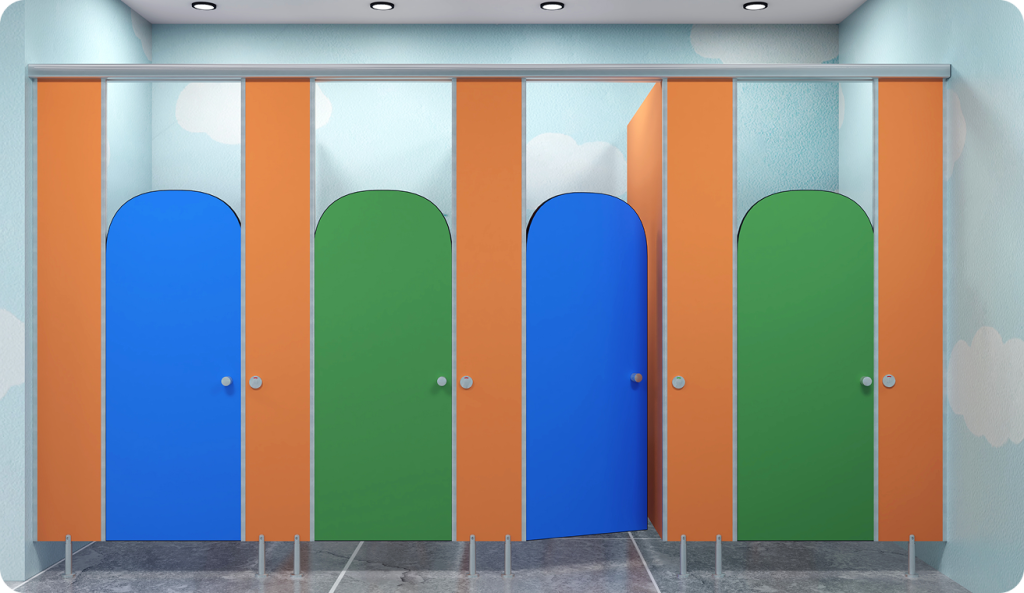

Super Kids Series

Creative curves and waves transform restrooms into engaging spaces for children.

Crafted with precision and durable materials to ensure a secure environment.

Options for matching tiles for a vibrant and imaginative atmosphere.

Requires minimum 8ft ceiling height
Pilasters are anchored to floor by 100-150mm adjustable legs & at top fixed to top rail of width 50mm
After completion of Wall tiling, floor tiling, ceiling, grouting, painting, electric works & plumbing.
This series can be done when both side walls are available (i.e wall to wall) or only one side wall is available (i.e wall to panel)

Explore the whimsical world of the Super Kids Series by Super Creations, specially designed to transform restrooms into playful and safe havens for young children. Crafted with advanced CNC machines, these cubicles boast creative curves, waves, and slopes that delight children while promoting safe hygiene practices. The profiles, featuring aluminium anodised U-channels, L-channels, top rail, and SS 304 hardware, ensure durability and easy maintenance, making the Super Kids Series an ideal choice for kindergartens and schools where safety meets vibrant design.

The Super Kids Series is not just a restroom solution; it’s an imaginative experience. With options for matching tiles or motifs, these cubicles provide a fun and safe environment for children. Super Creations prioritizes quality, and the Super Kids Series stands as a testament to their commitment to delivering innovative and child-friendly restroom solutions.

Providing and fixing toilet cubicle systems of DEBO/STYLAM make and installed by Supercreations in standard dimensions of 900-1200mm width X 1500mm depth X 2000mm height with a door size of 600mm width X 1830mm height with 12mm thickness.
The solid grade Compact Laminate panels made of Phenolic resins under high pressure and temperature having density >1400 kg/m3, including doors, pilasters & intermediate panels, which are resistant to heat, bacteria, chemical, scratch and impact & water immersion through permissible increase on weight will be <0.60~0.8%.

Finished product will be as per approved texture, shade & drawing, detailing and developed according to IS-2046 and EN438 standards and as per fire retardant BS-476/97 standard.
The product should have Green Guard Certificate. The toilet cubicle setup shall include necessary hardware fittings, made out of stainless steel (Grade-304 & 316), as per manufacturer’s specifications and approved by the engineer.

Hardware fittings consist of:

Aluminium anodised U-channels
Aluminium anodised top rail
Aluminium anodised door stopper channel
Aluminium anodised L-channel
SS 304 adjustable leg 150mm
SS 304 lock
SS 304 door knob
SS 304 coat hook
SS 304 gravity hinges
SS 304 screws and PVC wall plugs
Door noise reduction tape

The top fitting arrangement shall comprise of Aluminum Anodized top rail, fixed to pilasters. In the absence of brick walls, Aluminium Anodized L – channel (connected to the top rail) shall be used on the corners of the cubicle. All screws should be of stainless steel (Grade-304). All pilasters shall be supported by stainless steel(Grade-316) adjustable foot.
The base of the Stainless Steel adjustable leg shall be anchored to the floor with a clearance height of 150mm.The intermediate panel shall be of one continuous panel
without any joint. All visible edges shall be chamfered and designs in the shape of curves, waves or slopes fabricated with the help of advanced CNC machines as per the designs of the architect.
