Economical, budget-friendly and very easy to maintain – Elegance series is an efficient model using a sleek aluminium anodized and Nylon Polyamide hardware, apart from standard black. It is also offered in grey, off-white and white finishes
Suspends from the floor, easy for cleaning
The Vogue Series excels with an Occupancy Indicator LED Light, offering clear signals on cubicle occupancy for enhanced efficiency and convenience.
Save space and money on end pilaster

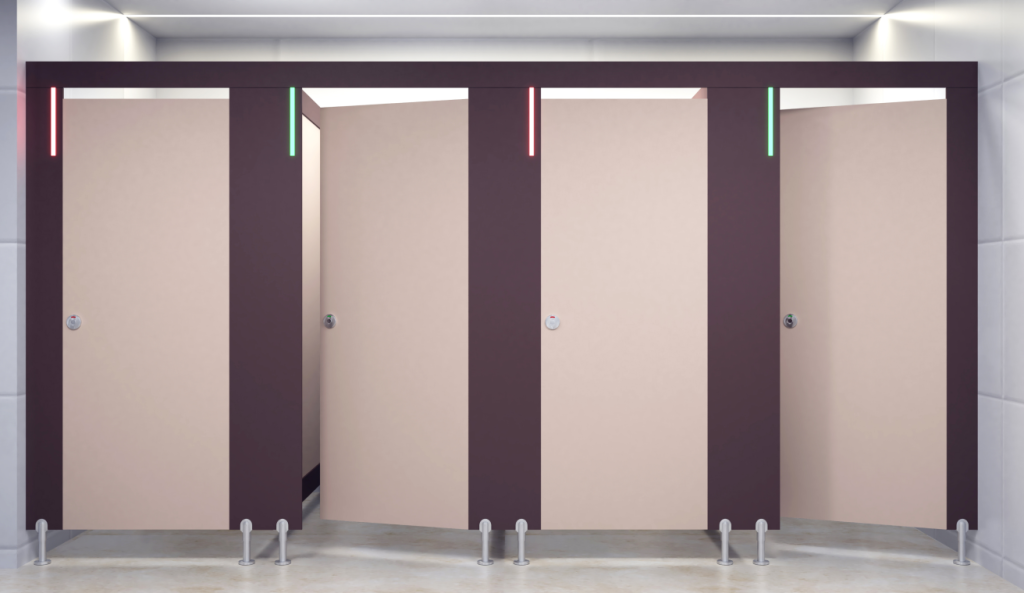

The Vogue Series stands as the flagship product of Super Creations, boasting a blend of sophistication and innovation. The series introduces a groundbreaking feature the Occupancy Indicator LED Light. This innovative addition enhances user experience by clearly indicating whether the cubicle is occupied or vacant, ensuring efficiency and convenience in high-traffic restroom settings.

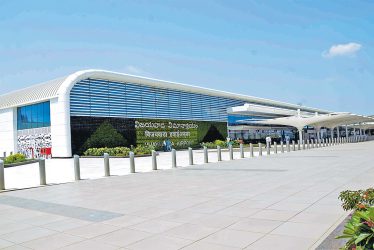

The Vogue Series has earned its place at prestigious locations such as Hyderabad’s Rajiv Gandhi International Airport, a testament to its quality and suitability for high-profile installations.
Providing and fixing toilet cubicle systems of DEBO India made and installed by Supercreations in standard dimensions of 900-1200mm width X 1500mm depth X 2080mm height with a door size of 600mm width X 1825mm height with 12mm thickness.
The solid-grade Compact Laminate panels made of Phenolic resins under high pressure and temperature having density >1400 kg/m3, including doors, pilasters & intermediate panels, which are resistant to heat, bacteria, chemical, scratch and impact & water immersion through permissible increase on weight will be <0.60~0.8%.
The finished product will be as per approved texture, shade & drawing, detailing and developed according to IS-2046 and EN438 standards and as per fire retardant BS-476/97 standard. The product should have a Green Guard Certificate. The toilet cubicle setup shall include necessary hardware fittings, made out of stainless steel (Grade 304 & 316), per the manufacturer’s specifications and the engineer’s approval.
Hardware fittings consist of:
Aluminium powder-coated U-channels
Aluminium powder coated top rail (115mm wide)
Aluminium powder coated door stopper channel
Aluminium powder coated L- channel
SS 316 adjustable Leg (upto 150mm height)
SS 304 door knob with thumb turn lock
Occupancy indicator LED light (18mm wide X 300mm height)
SS 304 coat hook
SS 304 auto return hinges
SS 304 screws and PVC wall plugs
Door noise reduction tape
The top fitting arrangement shall comprise of 115mm wide aluminium powder coated top rail, fixed to pilasters. In the absence of brick walls, aluminium powder coated L -channel(connected to the top rail) shall be used at the corners of the cubicle. All screws should be of stainless steel (Grade-304). Occupancy indicator LED light is fixed to pilasters inturn it is fixed to power source which is placed in top rail. All pilasters shall be supported by stainless steel (Grade-316) adjustable foot.
The base of the stainless steel adjustable leg shall be anchored to the floor with a clearance height of 150mm. The intermediate panel shall be of one continuous panel without any joint. All visible edges shall be chamfered.
Description
Total height from floor
Width of cubicle
Depth
Divider
Height
Pilaster width
Door height
Door width
Top rail height
Bottom gap
Panel thickness
Standard (in mm)
2080
1200
1530
1800
1830
100-300
1800
600
125
150
12
Customised (in mm)
2080 – 2350
1200 – 1500
1530 – 1830
1800 – 2100
1830
100-300
2100
750
125
150
12,18
